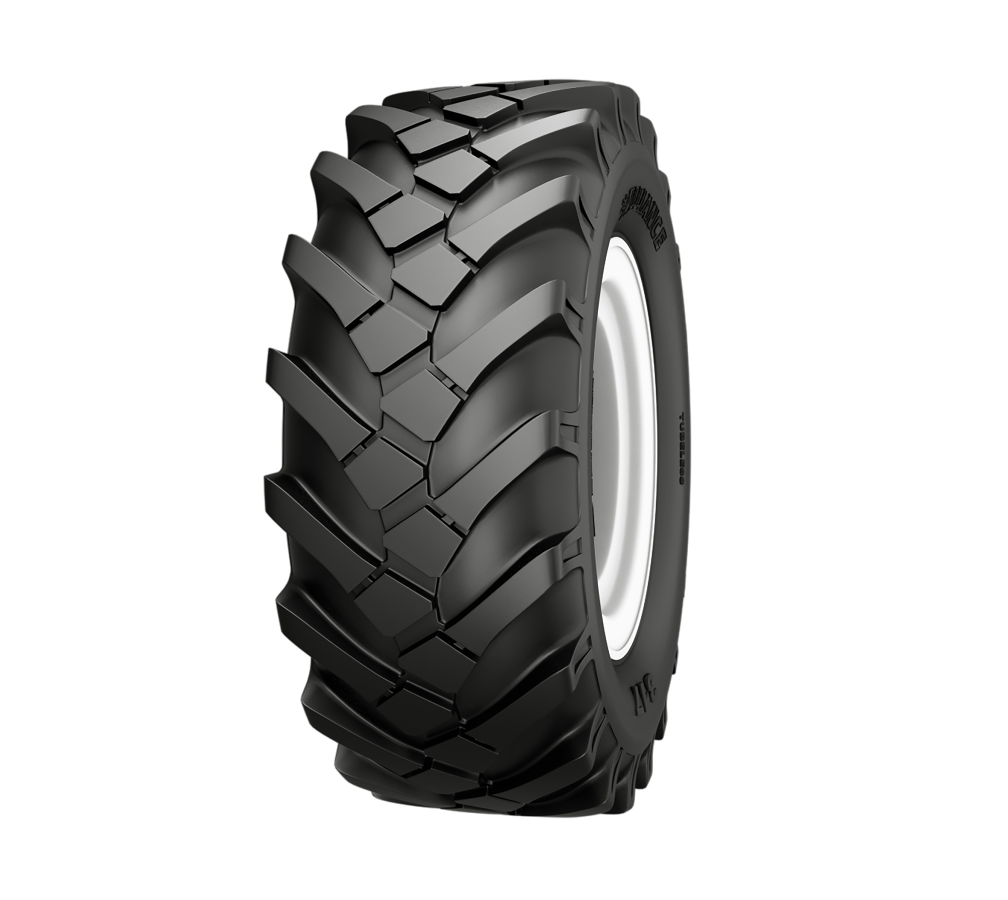

14.5-20 MPT 14 PR ALLIANCE 317 MPT 139G R-4 TL

Description

The Alliance 317 range of tyres have been designed for use with various equipment including backhoes, loaders, telehandlers and utility tractors. The unique tread design provides for good self-cleaning and excellent traction properties under severe conditions. A central tread bar helps to improve roadability and driver comfort whilst a strong casing provides stability and durability. Heat-resistant and wear-resistant compounds used in the manufacturing process help to further increase the tyre's life cycle.

Features

  • Bias ply multi-purpose tyres for various equipment.
  • Good traction and self-cleaning properties.
  • Good roadability and driver comfort.
  • Some sizes G rated for speeds of up to 90 km/h.
  • Heat-resistant and wear-resistant compound.

Specification

Sector
INDUSTRIAL
Application
PLANT
Range
PLANT MPT
Size
14.5-20 MPT
Size Suffix
MULTI PURPOSE TYRE
Brand
ALLIANCE
Pattern
317 MPT
Load/Speed Index
139G
Ply Rating
14
TT/TL
TL
Construction
BIAS
Nominal Section Width
14.5
Rim
20
TRA
R-4
Recommended Rim
11
Permitted Rim
12
Section Width
355 mm
Overall Diameter
1095 mm
Static Load Radius
500 mm
Rolling Circumference
3260 mm
Tread Depth
24.00 mm
Max Load (KG)/Speed (KM/H) 1
2430/90
Inflation Pressure Bar
3.50
Specification 1
HEAT RESISTANT COMPOUND
Specification 2
WEAR RESISTANT COMPOUND
ECE 54
Yes
Warranty
5 YEARS
Tread Directional/Non-Directional
DIRECTIONAL
